Suitable for commercial facilities, solar energy projects, EV charging integration, and backup power applications.
|
Cell Type |
LFP 314Ah |
|
Battery System |
1P120S |
| Efficiency | ≥90% |
| Cycle Life | ≥8000 Cycles |
| Cooling | Force air colling |

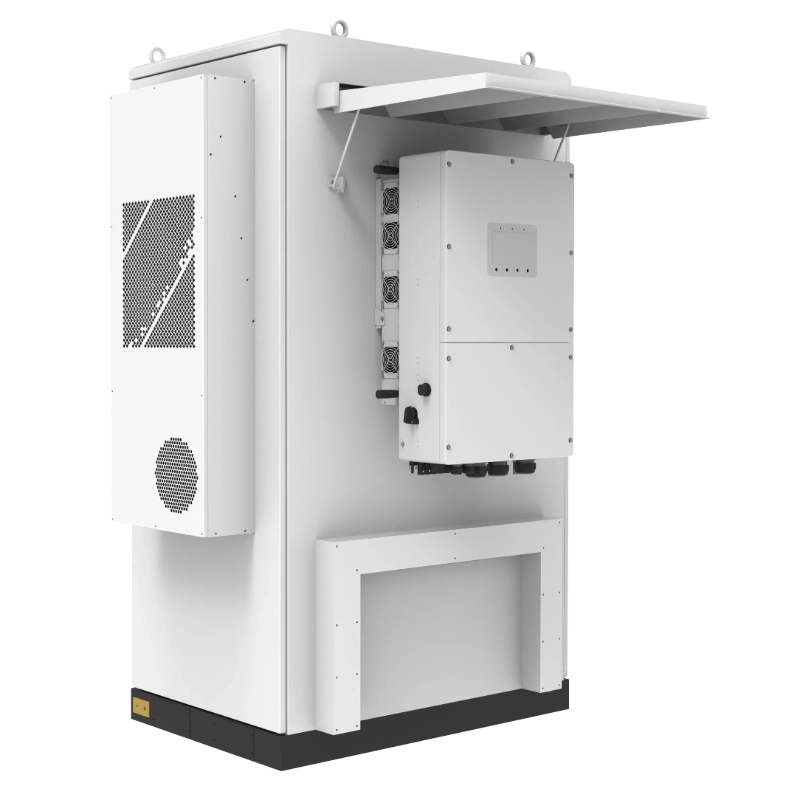

KED EnergyCore 120kWh Integrated Solar Energy Storage System
Features
Customization
1.Logo customization
2.MPPT customization
3.Input and output customization
- Product Description
- Video
- Download
A high-efficiency integrated energy storage solution designed for commercial and off-grid energy applications. The KED EnergyCore series combines 120kWh battery storage with built-in photovoltaic modules and flexible PV integration, delivering reliable energy management with modular scalability and high system efficiency.
Integrated Solar Storage Design
Built-in photovoltaic modules with support for external PV integration
120kWh High-Capacity Battery
Reliable energy storage for commercial and industrial applications
Modular Architecture
Flexible expansion design for scalable energy capacity
High System Efficiency
RTE greater than 89% for optimized energy conversion performance
Deep Discharge Capability
DOD greater than 95% for maximum battery utilization
Air-Cooled Thermal Management
Efficient cooling system for stable and reliable operation
Product Information
| Ba ttery Input | |
| Cell Type | LiFePO4 |
| Battery System | 1P120S |
| Rated Energy | 120.58kWh |
| Rated Voltage | 384V |
| PV Input | |
| Recommended input power Max | 60kW |
| PV Voltage | 150V~850V |
| MPPT | 3 |
| MAX. Input Current | 40A*3 |
| AC Output | |
| Rated Power | 40kW |
| Max. Power | 40kVA |
| Nominal Voltage | 400Vac/3P+N+PE |
| Nominal Frequency | 50Hz/60Hz |
| General | |
| Efficiency | ≥90% |
| Charge/Discharge Rate | 0.5P Max. |
| Cycle Life | ≥8000 Cycles |
| Cooling | Force air colling |
| Operating Temperature | -25~55℃ |
Looking for a reliable Energy Storage System solution?
Contact us today for pricing, technical details, and project support.
FAQ
-
What applications are your energy storage systems suitable for?
Our ESS solutions are suitable for commercial and industrial energy storage, solar integration, EV charging support, backup power, and off-grid applications. -
Is the battery capacity expandable?
Yes. Modular architecture allows flexible capacity expansion based on project requirements. -
Can the system integrate with photovoltaic (PV) power?
Yes. Our energy storage systems support photovoltaic integration and can work with solar power systems for energy storage and management. -
What battery technology is used?
Our systems typically use lithium iron phosphate (LiFePO4) batteries for enhanced safety, stability, and long cycle life. -
Does the system support off-grid operation?
Yes. Selected models support both grid-tied and off-grid operation modes. -
What cooling methods are available?
We provide air-cooled and liquid-cooled solutions depending on project requirements and system capacity.
-
